Products

Natural & Mono Diamond Dies


Wirex single crystal natural Diamond Dies are available in the size range from 0.050 mm to 2.00 mm provides premium quality and performance. Each diamond is individually inspected to ensure that all diamonds used are free from internal defects. Each diamond is properly mounted, precisely profiled, highly polished and accurately sized to offer uniform wire reduction, minimum die pull and excellent wire surface quality. Natural diamond is used in fine or ultra fine sizes or as finish Dies when a superior wire surface is required.

Wirex single Crystal Synthetic Diamond Dies (Monodies) are alternative to natural Diamond Dies and are manufactured to the highest standards following the same process used in Natural Diamond Dies production. Dies life in single crystalt synthetic diamond is consistent and better than Natural Diamond.

Advantages

  • Best surface finish of any die material available.
  • Lowest die pull and friction.
  • Excellent re-cut ability.
  • Diamond x-ray orientation provides greater consistency, more predictable wear and more pounds of uniform wire per die.

Applications

Used in fine and ultrafine wire sizes, or as finishing dies when wire surface quality is critical.

Wirex natural diamond Dies

Natural Diamond Dies

(Click to enlarge)

Monodie Range


   Product         Nominal                  Thickness          Minimum Inscribed

   Number       Thickness                 Tolerance                     circle

                               (mm)                       (mm)                          (mm)


    MD 05              0.5                 0.46 - 0.55                   0.65

    MD 06              0.6                 0.56 - 0.65                   0.80

    MD 07              0.7                 0.66 - 0.75                   0.90

    MD 08              0.8                 0.76 - 0.85                   1.00

    MD 09              0.9                 0.86 - 0.95                   1.10

    MD 10              1.0                 0.96 - 0.05                   1.10

    MD 11              1.1                 1.06 - 1.15                   1.20

    MD 12              1.2                 1.16 - 1.25                   1.30

    MD 13              1.3                 1.26 - 1.35                   1.45

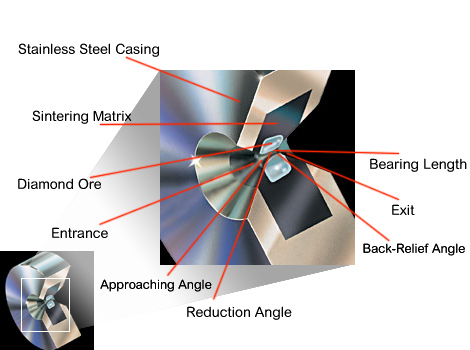

Wirex Natural Diamond Dies Profile

Die profile

(Click to enlarge)

Application Areas


       Non - Ferrous Metals                     Ferrous Metals


       Copper                                       Stainless steel (typically 303,

       Tinned Copper                             304, 316)

       Nickel plated copper                      Carbon Steels

       Cadmium coated copper                Nickel Alloys (Ni-Cr)

       Brass                                         Coated steel tyre cord

       Aluminium                                   Steel fine airbag mesh wire


         Precious Metals                              Refractory Metal


        Gold                                          Tungsten

        Platinum                                     Molybdenum

        Platinum - Rhodium
